Feelworld Monitor FW1018SPV1 10.1"

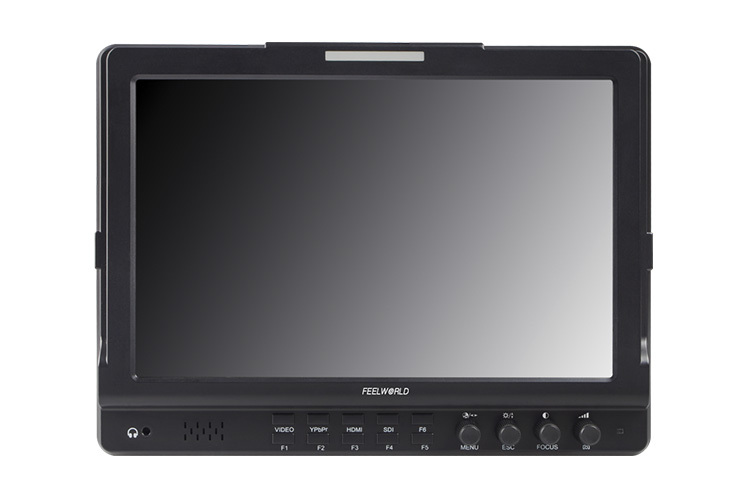

The FEELWORLD FW1018SPV1 10.1”IPS HD LCD On-Camera monitor is one of the best monitors of its kind. Thanks to FEELWORLD's good price-quality ratio, many professional photographers and videographers choose for FEELWORLD. The monitor also features image measurement functions like Focus Assist, Brightness Histogram, False Color, Zebra Exposure, Center Marker, Safe Frame, Check Field, Camera Mode, Aspect Ratio, Image Flip, Pixel-to-Pixel and Image Freeze you will be able to analyze the image. These functions are assignable across six function buttons on the front panel.

The large size 10.1 inch enables you to focus clearly on your shots and eliminate the guesswork from framing. It blows up your tiny built-in camera screen to a much larger display that enables easier viewing and won't strain your eyes. With brightness levels of 320cd/m², a 800:1 contrast ratio and 170° vertical and horizontal viewing angles this monitor is a useful tool when shooting video or stills, providing you with a larger image than your camera's built-in viewfinder or LCD screen. FW1018SPV1 provides maximum versatility with multiple inputs: HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R) and HDMI, 3G-SDI, Ypbpr, Video loop-through output, you can connect it directly to any DSLR or HD video.

1920x1200 IPS FHD Panel
Enjoy Consistent Images from Any Perspective. FW1018SPV1 uses an IPS panel, which provides a wide 170°/170° viewing angle and brightness output, up to 320cd/m². This means you'll be able to see accurate, consistent and bright images from any viewing point.

Multiple Inputs and Outputs
SDI / HDMI / YPbPr / Video / Audio

• Input: 3G-SDI X 1, HDMI X 1, Y X 1, Pb X 1, Pr X 1, Video X 1, Audio (L/R) X 2
• Output: 3G-SDI X 1, HDMI X 1, Y X 1, Pb X 1, Pr X 1, Video X 1
• Audio: Stereo Headphone, Internal Speaker

Professional Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.

3-color Tally Light
DB-9 input signal
There is front TALLY lights with 3 colors display, and controlled via DB-9 ports on the rear panel.

Flexible Battery System
The monitor is powered from 4-pin XLR connector, or 12V DC input with the included power adapter, and FW1018SPV1 has flexible battery system that supports F970, LP-E6, D28S, Anton, Sony V mount plates of your choice.

Key Features

• Focus Assist
• Brightness Histogram
• Exposure (Zebra)
• False Colors
• Check Field (Mono/Red/Green/Blue)
• Centre Marker
• Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Camera 5D II Mode
• Image Freeze
• Image Flip (H, V, H/V)
• Pixel-to-Pixel Mode
• Zoom All
• U/D & L/R Zoom
• 4:3 & 16:9 image adjustable
• Tally Indicator

In the box

• Feelworld monitor
• Sun Shade
• F970 Battery Plate
• Hot Shoe Mount
• Mini HDMI Cable
• Tally Kit
• 10 inch U bracket
• Operation Manual
