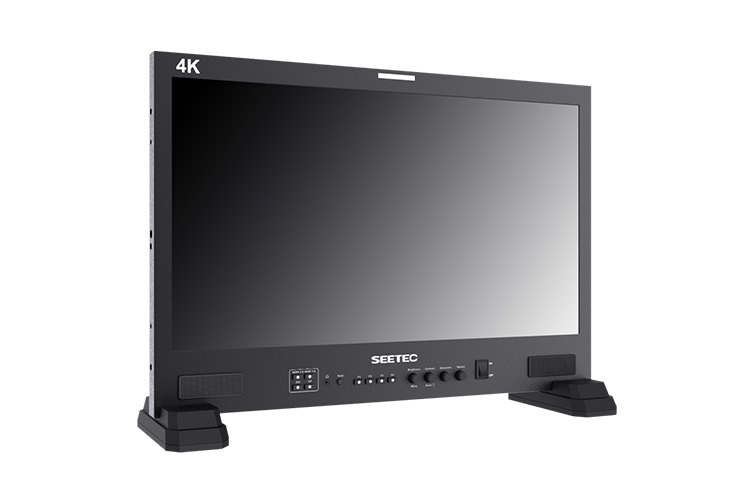

SEETEC Monitor LUT215 21.5"

SEETEC Monitor LUT215 21.5" - LUT215 full hd broadcast monitor with 4K HDMI for native display of up to 2160p60. The machined metal design includes a built in control panel for using features such as the built in 3D LUTs, histogram, 16-ch embedded audio meters, focus assist, false colors, over exposure, time code, picture in picture, anamorphic mode, image zoom, center marker, safety marker, ratio marker, check field, image freeze adjustable Gamma selection and more, either from the front panel or via GPI control!

21.5” IPS LCD, Full HD Resolution
Broadcast quality, allows you to see every pixel
The SEETEC LUT215 equipped with a 21.5 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 3000:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 178° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.

True Color. Professional Color Calibration
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

Professional Front Control Panel
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the LUT215 can meet your needs. It can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, saturation, and volume to make it easier to shoot. And the button with the night light technology, let you know the current input signal and the shortcut keys used.

Professional Monitoring Quality
SEETEC LUT215 is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor is equipped with 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI and DP interfaces, suitable for transmission of different signal formats.

4K HDMI/ DisplayPort Inputs
HDMI 2.0 & DisplayPort 1.2 support 4K 60Hz signal input.
HDMI 1.4 support 4K 30Hz signal input.

Built-in De-log 3DLUTs
User 3DLUT cube upload
The monitor has built-in multi camera logs to Rec 709 conversion 3DLUTs, including C-log standard, C-log full, S-log2, S-log3, BMD-4Klog. Support user 3DLUT cube files (support 17x17x17, 33x33x33, 65x65x65) to upload by USB, which is convenient for color creation during post-production monitoring. User can store up to 16 instantly selectable 3D LUTs.

16-Channel Audio Level Meters
The monitor can de-embed audio from SDI and HDMI. Support select any 2 channels audio to output via speaker or 3.5mm headphone jack. Under SDI audio, it supports max 16-ch embedded audio meters display, and you can select to display only 2 channels, 4 channels, 8 channels, and full 16 channels. Under HDMI audio, only 2 channels audio displays are supported.

Multi Window Modes
PIP/ PBP Modes
The picture-in-picture function can monitor two signals at the same time, which can be displayed simultaneously for different formats, resolutions, frame rates, or even different input types for comparison. And can display a loading LUT effect at the same time. You can adjust the picture-in-picture size, horizontal and vertical position, and rotate the picture.

UMD and Text-Tally Display
TSL 3.1/4.0 and Image Video Protocol
LUT215 supports UMD and Text-Tally display of TSL 3.1/4.0 and Image Video protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.

Tally Lights
GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.

Hassle-free Power
Monitoring anywhere you need it！
We've made it easy to power the monitor. The LUT215 can be powered in two ways: with an DC adapter or lithium batteries. The LUT215 has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

Heavy Duty Metal Construction
Machined aluminum design that's built to last! The full metal shell not only make the product more solid and durable, but also solve the problem of heat dissipation.

Key Features

• 3D LUT
• Time Code
• GPI Control
• Support IMD 3.1/ 4.0 Protocal
• UMD display, with 0-126 TSL address selection, Max
• 6 letters displayed
• Histogram
• Embedded Audio (16 channels in SDI; 2 channels in HDMI)
• Picture in Picture
• Focus Assist
• False Colors
• Over Exposure
• Anamorphic Mode
• Center Marker
• Safety Marker
• Over Scan
• Ratio Marker
• Marker Color
• Check Field
• Image Freeze
• Color Temperature Adjustment
• Custom Zoom
• Aspect Ratio

In the box

• LUT215 monitor
• 3A DC Power Adapter
• V-Mount Battery Plate
• Mini HDMI Cable
• Stand Feet
• Operation Manual
