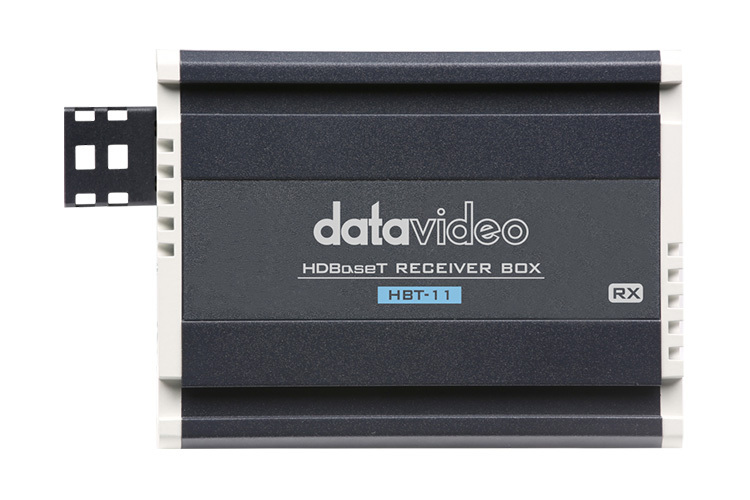

Single cable transmission by HDBaseT technology, up to 100m
Transmit video, audio, DVIP Ethernet control, RS-422/232 and POE from a single Cat.5e/6/6a/7 cable. The HBT-11 provides a maximum video transmission distance of 100 meters in Full HD Mode.
4K Transmission
Transmit up to 4K video from HBT-10 Transmitter to HBT-11 Receiver.
Supports DVIP/RS-422/232 Control Protocol
The HBT-11 supports protocol enabling to be controlled via RS-422/232 or DVIP interface.
Specifications
- Video/Audio Input: HDBaseT RJ-45 x1
- Video/Audio Output: HDMI x1
- DVIP: RJ-45 x1 (input)
- RS-422/ RS-232: Phoenix terminal. Pitch 3.50mm
- Power: DC IN: DC 48V
- HDBaseT Distance: Up to 100m by Cat.6 cable
- Operating Temp. Range: 0~40 °C
**In the Box **
- HBT-11 main unit
- AC cord
- DC 48V power adaptor
- Phoenix connector to RJ-45
