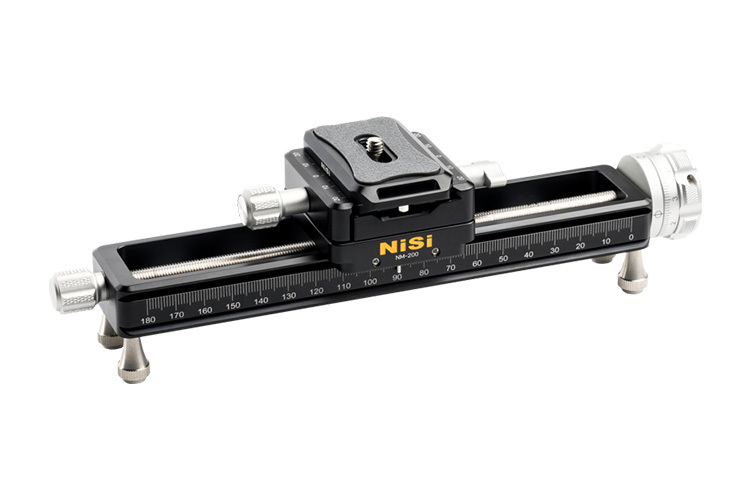

NiSi NM-200 Macro Focusing Rail Quick Adjustment

NiSi NM-200 Macro Focusing Rail Quick Adjustment - The clamp is able to be quickly positioned using the lock/unlock leaver to make large adjustments quickly. The focusing rail itself has a double-dovetail mount and will fit most Arca-type clamps on the market.

The mounting clamp allows 360-degree rotation to change the camera direction without having to remove the plate from the clamp. The adjustment range is 180mm while the rail size is 200mm.

The movement is adjusted by a Collapsible Thumb-Screw Knob which makes it easy to adjust and store. The collapsable thumb screw knob has been upgraded and features engraved index markings for precise adjustment.

Included is a longer quick-release plate designed for telephoto lenses and with a groove for straps and is easy to lock and release.

The maximum load of the rail is 5kg. The Macro Rail can be mounted on most Arca-type clamps/ball heads on the market and also includes four detachable foot nails that allow the use of the rail directly on the tabletop. The stage travel per revolution is 1mm with engraved index marks on both sides of the rail for fine adjustments. The bottom for the rail includes 3/8” and ¼” screw hole which allows the use of all tripod heads.

The NiSi Quick Adjustment Macro Focusing Rail NM-200 with 360 Degree Rotating Clamp is constructed with high-quality CNC machined aluminum and is hard anodized with a corrosion-resistant finish.
These features make it scuff and scratch-resistant.
