SmallRig 4002 15mm Dovetail Baseplate

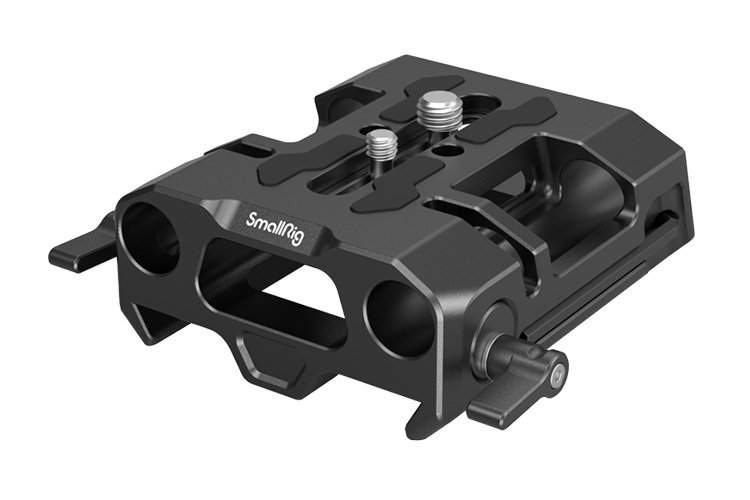

SmallRig 4002 15mm Dovetail Baseplate - Compatible with ARRI dovetail plate and has a hollowed-out structure to weigh only just over 300g and can bear as much as 20kg. One 1/4"-20 screw and one 3/8"-16 screw, through the top though slots, lock camera to prevent twist.

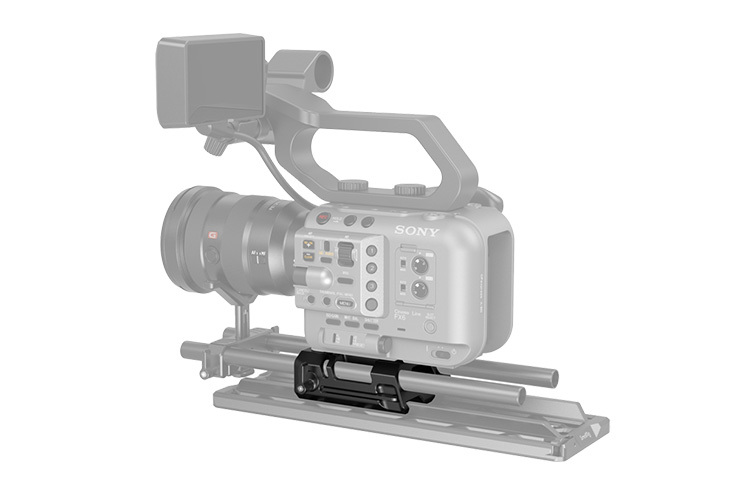

A wrench is built into the side for assembly and disassembly without affecting the use of the baseplate. The baseplate features a 1/4"-20 threaded hole and a 3/8"-16 threaded hole at the bottom that support other quick-release plates besides ARRI ones. With a low center of gravity, it measures only 38mm in height, so that camera is only 28mm away from the dovetail plate, lowering the height of camera while leaving enough room for dual rods.

Note:
When using with this product and dual 15mm rods with cameras with lower center of optical axis, a cage or a heightriser plate is recommended.

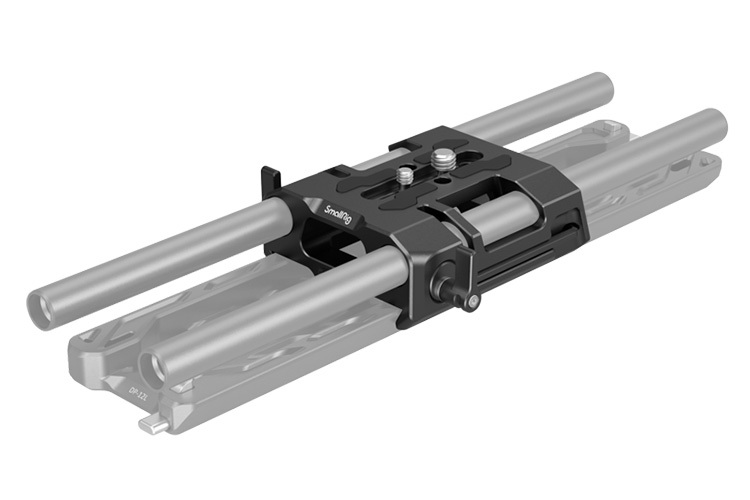

The center of rods is 15mm away from the top of the dovetailplate, and 13mm away from the top of the baseplate

Compatibility:
Universal

Package Includes:
1 x Baseplate
2 x 1/4"-20 Screw
1 x 3/8"-16 Screw
1 x Wrench
