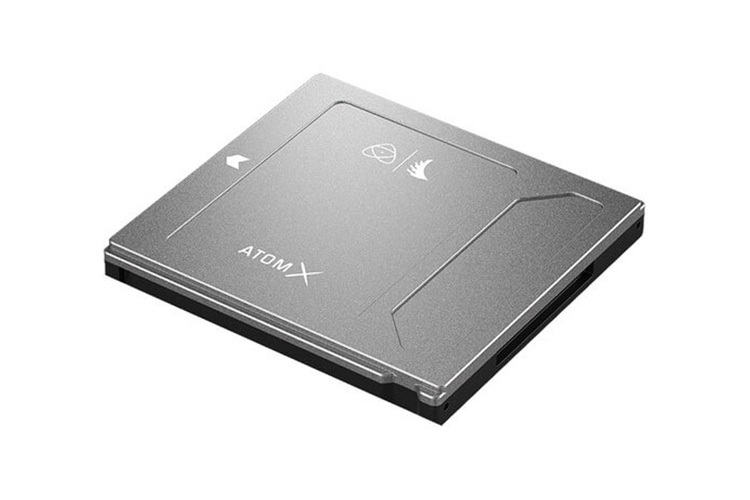

Atomos Angelbird SSDmini 2TB

Atomos Angelbird SSDmini 2TB - This 2TB Angelbird AtomX SSDmini is custom designed to fit into a variety of Atomos products, while maintaining high data throughput rates necessary for a 4K workflow. It fits perfectly into the Atomos Ninja V, Ninja Flame, Ninja Inferno, and Shogun Inferno. An optional adapter handle enables using this SSD with the Shogun Studio, Sumo 19, and Sumo 19M.

Although 20% smaller than an average SSD, the SSDmini makes no concession to size and features formidable 560/500 MB/s read and write speeds. Incorporating Stable Stream technology so you don't drop any frames. The SATA III connector enables connecting to a standard SATA III port when it is time to transfer your footage.

Supports Capturing:
• CDNG up to 4k30p
• ProRes RAW HQ 5.7K up to 30p
• 4k60p and 2k240p

Supported Codecs:• Apple ProRes: 4k60p and 2k240p
• Avid DNx: 4k60p and 2k240p
• Apple ProRes RAW: 5.7k30p, 4k60p and 2k240p
• CDNG: 4k30p

Shock, temperature, X-ray, and magnetic proof

Supports the entire Atomos range of Ninja and Shogun devices and with the use of an adapter handle, even the Sumo19, Sumo19M, and Shogun Studio

Technical data:
Storage Capacity 2 TB
Connections 1 x SATA (SATA III)
Interface SATA III (6 Gb/s)
Maximum Read Speed 560 MB/s
Maximum Write Speed 540 MB/s
Endurance (Total Bytes Written) 6000 TB
Mean Time Between Failures (MTBF) 2,400,000 Hours
DC Input Power 5 VDC
Power Consumption 0.35 W (Idle)
3.5 W (Maximum)
Certifications CE, FCC, REACH, RoHS, as per Manufacturer
Operating Temperature -4 to 158°F / -20 to 70°C
Storage Temperature -40 to 185°F / -40 to 85°C
Operating Humidity 5 to 95%
Operating Shock 1000 G / 0.5 ms
Operating Vibration 2.17 G
Dimensions 3.15 x 2.97 x 0.37" / 80 x 75.5 x 9.3 mm
Weight 3.2 oz / 90 g
